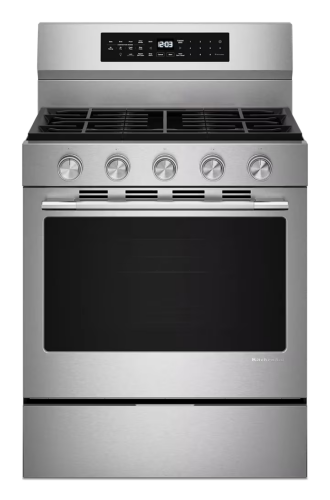

5.0 Cu. Ft. Smart Freestanding Gas Range with Convection Cooking Modes

Most Powerful KitchenAid 30-Inch Gas Range Available

• Our Most Powerful 30-Inch Gas Ranges Available.* 63K total BTU through 5 individual burners. *Based on total BTU.

Convection Cooking Modes

• help you get consistent results with optimal heating temperatures for juicy roast meats with No Preheat Slow Cook, restaurant-style pizza with Fresh Pizza Mode, No Preheat Air Fry for crispy game day wings, and more.

Smart Appliance

• lets you control the oven with your Google Assistant or an Alexa-enabled device to stay hands-on or hands-off.* The KitchenAid™ App lets you conveniently preheat, proof, bake, and roast, plus store your favorite recipes for easy reference. *Wi-Fi & App required. Features subject to change. Amazon Alexa capabilities available in U.S. only. Google Assistant capabilities available globally. For details and privacy info, visit KitchenAid.com/Connect (U.S.) or KitchenAid.ca/Connect (Canada). Alexa, Google and certain other trademarks are owned by their respective companies.

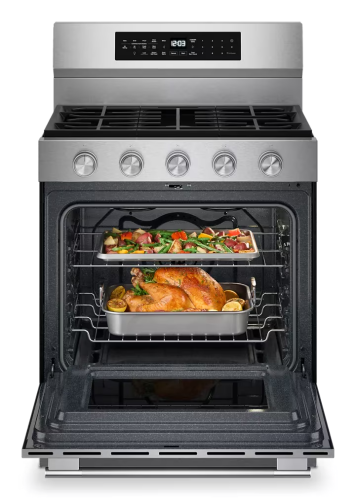

5.0 Cu. Ft. Capacity with Rapid Preheat

• maximizes your cooking potential with our spacious oven, designed to handle entire meals like a full turkey and sides simultaneously. Featuring an optimized oven design, it reaches 350°F in under 8 minutes*, reducing wait times. *Using Rapid Preheat to 350°F when cooktop is not in use.

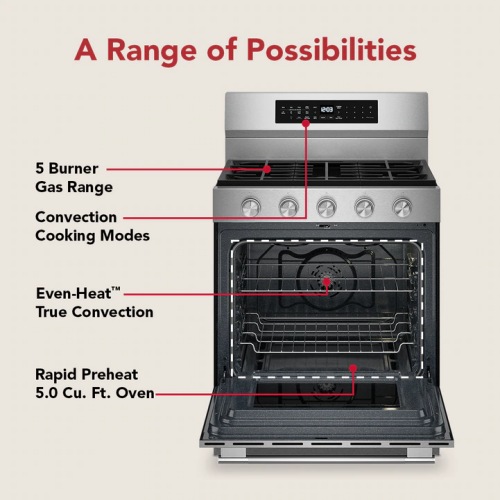

Even-Heat™ True Convection

• features a unique bow-tie design with a heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts, and flavorful caramelized vegetables.

Steam Clean & Self-Cleaning Cycles

• keep your oven clean with two distinct cycles. The Steam Clean Cycle, perfect for quick, routine maintenance, helps loosen cooked-on food in under an hour. Simply add water to the bottom of the oven and wipe down after the cycle. For a deeper clean, the high-temperature Self-Clean Cycle powers through baked-on spills, leaving the oven cavity clean with just a final wipe-down.

Rapid Boil

• boils water 20% faster* so you can poach eggs, cook pasta and more without missing a beat. *Compared to KitchenAid 10K BTU Burner on the same model.

Edge-to-Edge Cast-Iron Grates

• subtly integrate with your countertop, allowing you to move pots and pans easily from your counter to the cooking surface. Its clean, minimalist lines enhance your kitchen's design. Cast-Iron Grates are dishwasher safe for easy cleaning.

5 Burner Gas Range

• provides the perfect range of cooking power from 18,000 to 5,000 BTU, so you can go from a rolling boil to a delicate simmer.

12,000 BTU Oval Burner

• is the most powerful oval burner available. This high-heat 12K BTU burner helps you create the perfect sear on steaks, scallops and stir-fried veggies.

Edge-to-Edge Cast-Iron Grates

• subtly integrate with your countertop, allowing you to move pots and pans easily from your counter to the cooking surface. Its clean, minimalist lines enhance your kitchen's design. Cast-Iron Grates are dishwasher safe for easy cleaning.

No Preheat Air Fry Mode

• lets you save time and skip preheating while you get crispy and browned food while using less oil than traditional deep frying. Dishwasher-safe basket sold separately.

Fresh Pizza Mode

• helps you create homemade, restaurant-style pizzas from the comfort of your kitchen. This setting cranks the heat to 550°F for delicious results.

No Preheat Reheat

• brings yesterday's meal back to life quickly, without the need for a microwave.

No Preheat Slow Cook

• seal in flavors of juicy roasts, stews, and braised foods with No Preheat Slow Cook for savory comfort meals without the need for a countertop slow cooker.

Air Baking

• helps you craft delicious cakes, muffins, last-minute bake sale treats, and more, with even results on multiple racks.

Air Roast

• seals in the flavors and juices of meat and poultry for a hearty, comforting meal.

Air Broil

• melts, chars and sears quickly using intense air-driven heat to create toasted treats, melty grilled cheese and more.

Proof Mode

• is designed to maintain a low temperature and provides ideal conditions to properly activate yeast, allowing your baked goods to rise.

PrintShield™ Finish

• resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.

LCD Glass Touch Controls

• offer an intuitive, easy-to-use touch screen experience.

Storage Drawer

• adds additional storage space that’s perfect for pots, pans and baking sheets.

Sabbath Mode

• to meet kosher requirements for use on the Jewish Sabbath and other religious holidays. When in Sabbath Mode, the oven can be set to Sabbath baking and will maintain a constant temperature with lights, displays and tones disabled.

Proudly assembled in Tulsa, Oklahoma, U.S.A.

• we take pride in building strong, reliable appliances for your home. These ranges are proudly assembled by hard-working employees in Tulsa, Oklahoma.

-
Air Fry Basket Included	No
Console Language	English
Literature Language	English; French; Spanish
Range Features	Smart Appliance

Certifications
ADA Compliant	No
CUL	Yes
Star K Certified	Star K Certified
UL	Yes
Prop65	Standard

Controls
Display Color	White

Cooktop Details
Auto Re-Ignition	Yes
Cooktop Control Knob Type	Plastic
Cooktop Control Location	Backguard
Cooktop Control Type	Knobs
Cooktop Surface Material	Porcelain Coated Steel
Griddle Included	No
Heating Element On Indicator Light	Yes
Hot Surface Indicator Light	Yes
Ignition Type	Direct Spark Ignition
Total Gas Btus - Cooktop	63,000

Details
Air Fry	Yes
Automatic Convection Conversion Temperature Adjust	No
Cooktop Configuration	All Burners
Delay Clean	No
Fuel Type	Gas
Installation Configuration	Freestanding
LP Convertible	Yes - Kit Included
Oven Automatic Shut-Off	Yes
Oven Configuration	Single Oven
Oven Light Switch Location	Oven Control
Oven Selections	Audible Signal; Bake; Broil; Cancel/Off; Clock; Control Lock; Convect Modes; Cook Time Indicator; Delay Start; Keep Warm/Warm Hold; Language Conversion; No Preheat - Frozen; Rapid Preheat; Reheat; Sabbath Mode; Start Time; Stop Time; Timer
Power On Indicator Light	Yes
Power Outage Compatible	Yes
Range Configuration	Freestanding
Range Drawer Type	Storage Drawer
Range Type	Freestanding

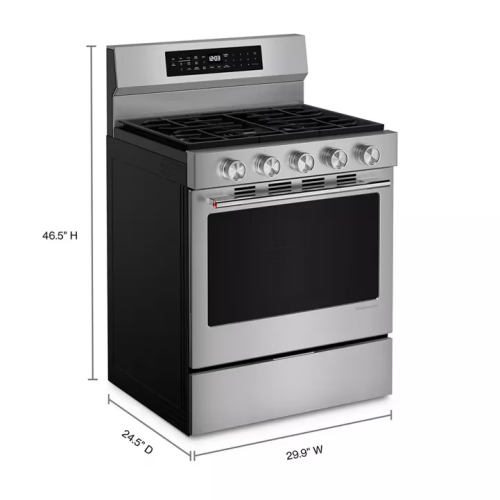

Dimensions
Adjustable Height	Yes
Cutout Depth	24
Cutout Height	36
Cutout Width	30
Depth Closed Excluding Handles	26.5
Depth Closed Including Handles	28.1
Depth Excluding Doors	24.5
Depth With Door Open 90 Degree	46.8
Oven Interior Depth	19
Oven Interior Height	18.8
Oven Interior Width	24.2
Carton Depth	29 inches
Carton Height	49 inches
Carton Width	32 inches
Gross Weight	215 pounds
Net Weight	199 pounds

Electrical
Power Cord Included	Yes

Element/Burner Details
Center Rear Element-Burner Power	12,000 BTU
Center Rear Element-Burner Size	N/A
Center Rear Element-Burner Type	Oval Burner
Cooktop Element Style	Sealed Burner
Left Front Element-Burner Power	18,000 BTU
Left Front Element-Burner Size	N/A
Left Front Element-Burner Type	Large
Left Rear Element-Burner Power	10000 BTU
Left Rear Element-Burner Size	N/A
Left Rear Element-Burner Type	Standard
Number Of Cooking Element-Burners	5
Right Front Element-Burner Power	18,000 BTU
Right Front Element-Burner Size	N/A
Right Front Element-Burner Type	Large
Right Rear Element-Burner Power	5,000 BTU
Right Rear Element-Burner Size	N/A
Right Rear Element-Burner Type	Simmer/Melt

Export Details
Export Packaging	No

Exterior Details
Door Type	Glass
Oven Control Knob Type	N/A
Oven Control Location	Backguard
Oven Control Type	Electronic Touch
Oven Window Size	Extra Large
Handle Color	Stainless Steel
Handle Material	Metal
Handle Type	Reach Through Handle
Knob Color	Stainless Steel
Knob Type	Weighted-Plastic

Grate Details
Grate Details	Dishwasher Safe; Matte Finish; Porcelain Coated Steel Grates
Number Of Grates	3

Oven Details
Bake Element Power	16,500 BTU
Broiler Element Power	1,300 W Electric Broil
Broiler Location	Top Center
Convection Element Type	True Convection
Convection Functions	Air Baking; Air Broil; Air Fry; Air Reheat; Air Roast; Bake, Broil, and Roast; Fresh Pizza; Keep Warm; No Preheat; Proof; Slow Cook; Warm Zone
Door Lock	Yes
Door Removable	Yes
Hidden Bake Element	Hidden
Natural Gas Convertible	No
Number Of Oven Lights	1
Number Of Oven Racks	2
Number Of Rack Guides	5
Oven Cleaning Type	Self Clean + Steam Clean
Oven Cooking System	True Convection
Oven Light Type	Halogen
Oven Rack Front Material	Metal
Oven Rack Guide Type	Embossed
Oven Rack Type	1 Standard, 1 Max Capacity
Temperature Probe	No
Temperature Sensor	Yes
Total Gas Btus - Ovens	16,500
Interior Color	Blue

Smart Compatibility
Connectivity	Amazon Alexa; Android; Google Assistant; Nest; iOS
Smart Appliance	Yes
Works With	App; Bluetooth; Remote Access; Voice Controlled; WiFi
