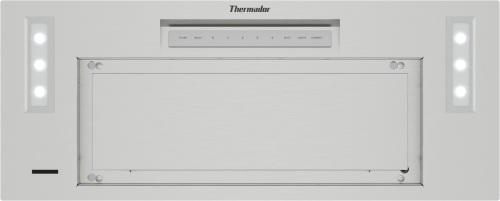

Masterpiece®, Custom Insert Hood, Stainless Steel
Model # VCI6B30ZS
-
Color: Stainless Steel
-
Width:26 8/16 inches
Height:5 11/16 inches
Depth:10 10/16 inches -
-
Rebate(s) Available! See Details
Product Details
- Masterpiece® Wall Hoods add bold, distinct flair to your kitchen and are crafted to complete the ultimate cooking system
- allows for remote monitoring and control of lights and fan speed, notification to clean the grease filter via Home Connect app, works with smart home devices and services like Amazon Alexa.
- features an Automatic Mode, that adjusts the fan speed according to your cooking style, as well as Delay Shut Off, which runs the hood 10 minutes after you are done cooking to remove any lingering odors.
- highlights your meal from first course to last with multi-level vivid LED Lighting.
- convenient control that is easy-to-use and easy-to-clean.
| General | |
| Product group | Hood |
| Brand | Thermador |
| SKU | VCI6B30ZS |
| Internal article number | VCI6B30ZS |
| EAN code | 825225961284 |
| Color body | Stainless Steel |
| Material | Stainless Steel |
| Typology | Built-in/Built-under |
| Type of control | Electronic |
| Construction type | Built-in |
| Installation type | Wall-mounted |
| Type of control | Via app |
| Motor location | Integrated motor in hood body |
| Watts (W) | 338 |
| Volts (V) | 120 |
| Frequency (Hz) | 60 |
| Power cord length (cm) | 150.0 |
| Plug type | No Plug |
| Height of product, without chimney (mm) | 267 |
| Height of the packed product (mm) | 394 |
| Width of the packed product (mm) | 330 |
| Depth of the packed product (mm) | 794 |
| Power Cord Length | 51 1/8" |
| Minimum height for installation (mm) | 381 |
| Maximum height for installation (mm) | 584 |
| Minimum width for installation (mm) | 660 |
| Maximum width for installation (mm) | 660 |
| Depth for installation (mm) | 260 |
| Net weight (kg) | 11.5 |
| Gross weight (kg) | 13.4 |
| Air exhaust | Yes |
| Diameter of air duct top | 8 |
| Overall appliance dimensions (HxWxD) | 5 3/4'' x 26 1/2'' x 10 5/8'' |
| Product packaging dimensions (HxWxD) | 15 1/2'' x 31 1/4'' x 13'' |
| Discharge direction | vertical |
| Required distance above cooktop/ranges | 30''/30'' |
| Total annual energy consumption | 105.7 |
| Design | Integrated hood |
| Type of manual control devices | touch control |
| Type of automatic control devices | Control via cooker/hotplate |
| Remote control | Yes |
| Number of motors | 1 |
| Total output power of the motors | 330 |
| Light Control Type | Continuous |
| Number of lights | 2 |
| Total power of the lamps (W) | 40 |
| Total luminance (lux) | 150 |
| Diameter of air duct (mm) | 200 |
| No-return airflow flap | No |
| Odour filter | No |
| Optional accessories | CHFVCI30ZS, REMCPW |
| Number of speed settings | 4-stage |
| Type of lamps used | Low consumption |
| Clean filter reminders | Yes |
| UPC code | 825225961284 |
| Gross weight | 30.000 |
| Net weight | 25.000 |
