Titan Island 42in SS PowerWave
Model # AK7742AS
-
Color: Stainless Steel
-
Width:41.9375 inches
Height:33 - 50 inches
Depth:31.625 inches -
-
Product Details
- Airflow Control Technology™ (ACT™)
- Professional Baffle Filters
- Directional Lighting
- CleanAir Function
- Multiple Blower Options
- Optional wireless remote control

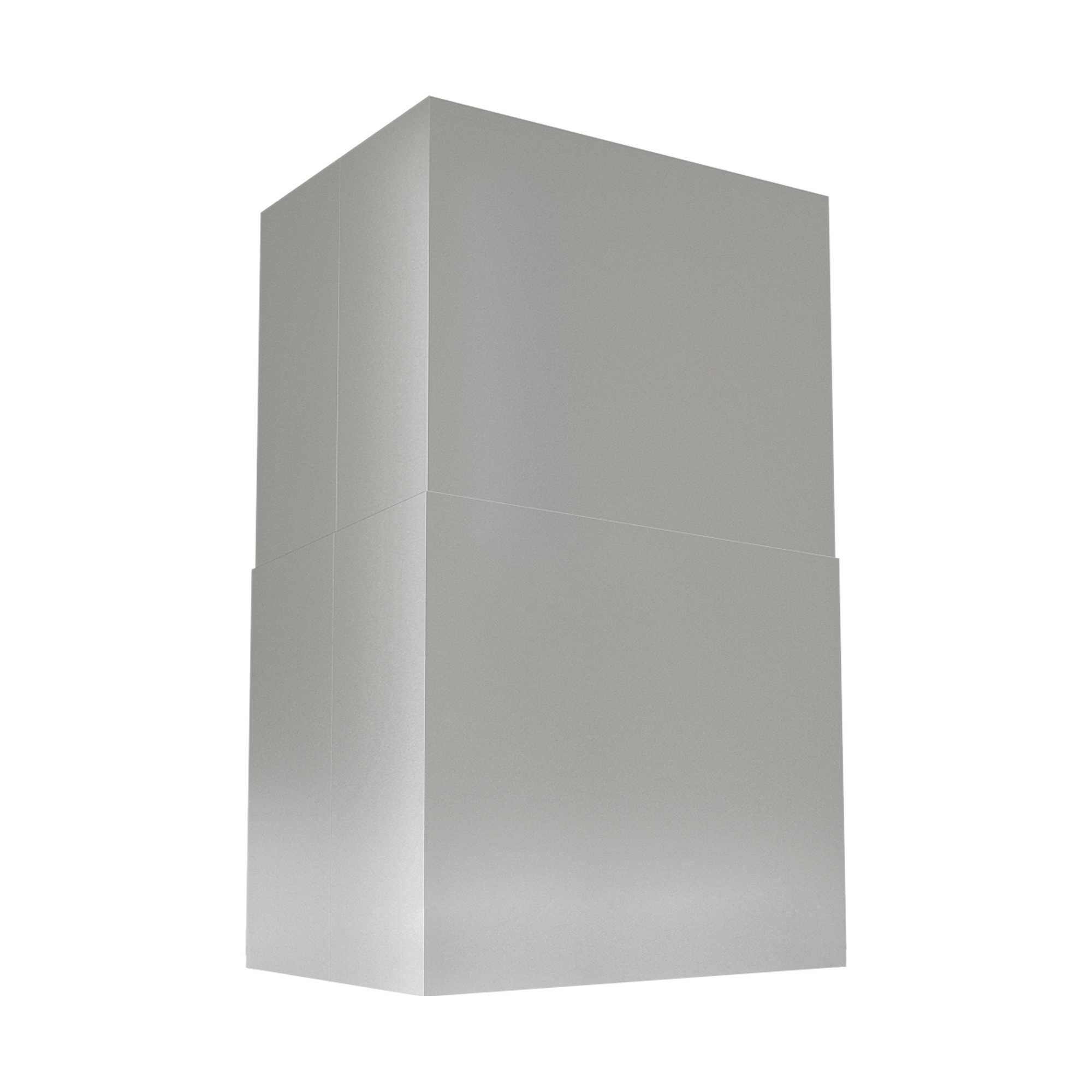

- Optional Extension Duct Cover Kit
| General | |
| Blower Included | Yes |
| Blower CFM w/ACT | 590, 390, 290 |
| Internal Blower 1 CFM | 750 |
| Internal Blower 1 Min. Sones | 0.5 |
| Internal Blower 1 Max Sones | 7 |
| Internal Blower 2 CFM | 1300 |
| Internal Blower 2 Max Sones | 8 |
| Minimum CFM | 200 |
| Installation Type | Island |
| For Outdoor Use | No |
| Controls Type | Electronic LCD |
| Blower Speeds | 6 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Duct Discharge | Vertical |
| Duct Size; Vertical in. | 8 |
| Mounting Height Above Cooktop in. | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 4 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | PBD-1300A, Z1C-0077, 14000005, MUA008A, MUA010A |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 300 |
| Certification | UL |
| Nominal Width in. | 42 |
| Net Width in. | 41.9375 |
| Net Depth in. | 31.625 |
| Net Height in. | 33 - 50 |
| Weight lbs. | 125.6 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 10 ft. |
| Chimney Height in. | 18.5 |
| Chimney Width in. | 17.93 |
| Chimney Depth in. | 16.25 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
